Rail plate manufacturers in the crane rail application is more widely, of course, for different types of track, we also want to choose the right track plate, so as to adapt to different load-bearing. Generally speaking, crane rail types include rail, railway rail and square steel. The installation method of the track should also be based on the situation, so as to choose the appropriate, the following track plate to introduce the installation method of the bridge crane track.

There are two kinds of rail beams commonly used for installing rails: one is steel structure beam, the other is precast concrete beam. Precast concrete beams must have embedded holes for bolt insertion during installation, or embedded bolts in precast concrete beams.

The installation method of crane track is useful, such as plate fixation, hook screw fixation, welding and bolt fixation. In order to adjust the horizontal direction, the holes in the track plate are usually made into long holes, and the vertical adjustment can be padded under the rail. Track platen in the design, to have enough rigidity, each platen, according to the size of the force can be made of single hole or double hole. Only when the rail is connected to the rail beam or the fixed steel plate on the rail beam by welding, the gear can be welded on the rail.

Of course, the crane track should also be based on the consignment and model of the crane, so as to choose different types of track laying, such as light rail and heavy rail, so in the use of rail clamping plate, we also want to choose the corresponding light and heavy rail rail clamping plate. The use of rail pressure plate improves the safety and stability of rail operation, which is of great significance for crane operation.

Rail platen can be divided into: GDGL platen is also called 514 double hole platen (I beam with platen).

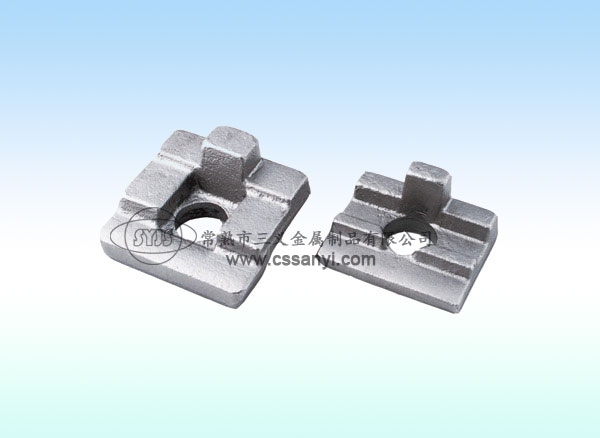

DGL platen is also called long hole casting platen (concrete beam and concrete floor platen).

The models of GDGL platen can be divided into GDGL-1 (for 38kg rail) - GDGL-7 (for 120kg rail).

The models of DGL platens can be divided into 6a-1 (for 24kg rail) - 6a-7, (for 120kg rail).
