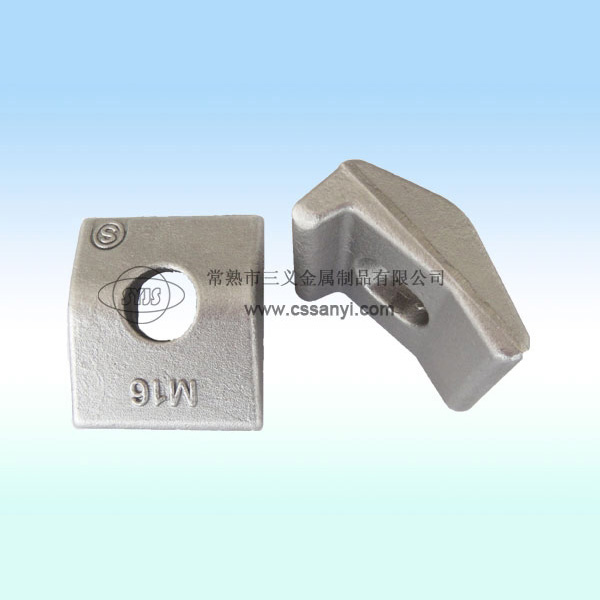

Rail platens Instructions for rail platens to be welded during rail installation. If the rail pressure device is used, the bolt on the rail pressure device is easy to loosen, which is easy to cause the truck gnawing rail or other safety accidents; Using welded platen, platen and rail bearing beam welded together is very strong. In the actual production, the double beam and trolley track of our company are fixed with welded platen, and the inspection standards for track installation refer to GB/T3811. Therefore, for safety reasons, we suggest using welded platens.

1, can be used for all kinds of cranes with or without guide wheel.

2, the flexible track pressure plate is equipped with vulcanized rubber pressure tongue, the pressure track at the same time greatly reduce the noise and improve the working environment.

3, the pressure plate has the function of self-locking, it through the wedge structure of the upper and lower two sides of the tilt and automatic locking.

4, can provide favorable installation size. No holes are required in the steel beams and no bolts are perforated from under the beams. It only needs to be welded to the steel plate foundation (zm.jt0.49) supporting the guide rail, and the upper press plate is locked to the welded base by 8.8 bolts.

5, flexible rail pressure plate for rail and crane beam allowed deviation can be well controlled, and for the crane rail installation or maintenance of the lateral adjustment provides a great convenience.

The nc machine tool rail, rail clips, welding type fixed on the rail, rail bolt, steel tie and bridge beam block, box girder concrete embedded parts, climb cone, tower crane sleeve rod can be adjusted, etc. Products are widely used in CNC cutting equipment, roads and railways, ports, lifting, iron and steel industry, power plants, metallurgical chemical industry, and many other areas.
